GMD-S600 Gynecology Medical Devices CE Auto Vaginal Infections Analyzer
Product Details:
| Place of Origin: | China |
| Brand Name: | DIRUI |
| Certification: | ISO13485,CE |
| Model Number: | GMD-S600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Carton or wooden case |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Bacteria Analysis System | Model Number: | GMD-S600 |
|---|---|---|---|
| Instrument Classification: | Class II | Product Name: | GMD-S600 Vaginal Infections Analyzer |
| Throughput: | 60 Samples/hour(batch Test) | Place Of Origin: | Jilin, China |
| Warranty: | 18 Months | After-sale Service: | Online Technical Support |
| Systematic Reagents: | Strips QC And Calibrators | ||
| High Light: | GMD-S600 Gynecology Medical Devices,Gynecology Medical Devices CE |
||
Product Description

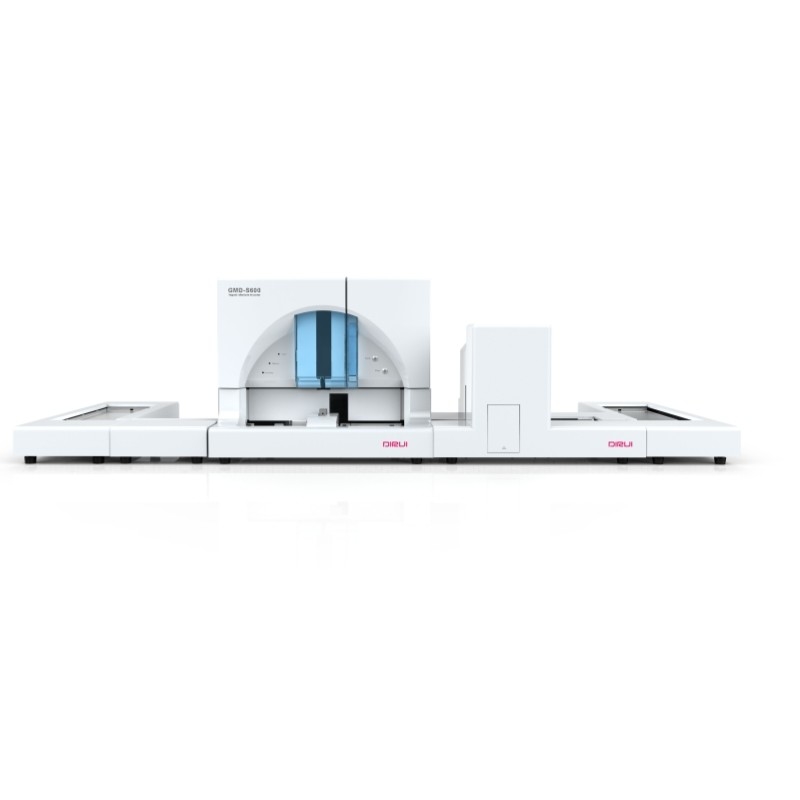

Vaginal Infections Analyzer GMD-S600 Auto Vaginal Infections Analyzer
Maternity hospitals
● The vaginitis at first prenatal visit is associated with preterm delivery andlow birth weight.
● The Vaginitis would cause pregnancy related harm, such as miscarriage,infertility, neonatal death, etc. There
could be cross infection to your partners.
● GMD-S600 is used for pre-pregnancy examination and pre-marital examination for healthy child bearing.
Central lab or Physical Examination Dept
● Repeated vaginitis would destroy the immune system and cause complications of cervicitis, pelvic
inflammation, annexitis, urethritis etc.
|
Sediment testing:
|
method Flow type image technology
|
|
Sediment analysis items:
|
RBC, WBC, squamous epithelial, clue cell, mould, trichomonad, lactobacillus and miscellaneous bacteria
|
|
Chemistry analysis items:
|
Neuraminidase (SNa), leucocyte esterase (LE), hydrogen peroxide (H2O2),β-glucuronidase (GUS) (optional),
n-acetyl hexosaminidase (NAG) (optional),proline aminopeptidase (PIP) (optional), lactic acid (LA) (optional), oxidase (OX)(optional) and pH (optional) |
|
Test speed:Sediment analysis mode:
|
60 samples/ hour
Chemistry analysis mode: 60 samples/ hour Combined sediment+chemistry analysis mode: 60 samples/ hour |
|
Sample type :
|
Vaginal secretions
|
|
Dyeing function:
|
If automatic dyeing is selected, the Analyzer will dye the sediment of RBC, WBC,squamous epithelial, clue cell
and trichomonad in samples automatically. |
|
temperature
|
Automatic temperature control range of chemistry testing area: 37℃±2℃;
Automatic temperature control range of sediment dyeing cell: 37℃±1℃. |
|
Volume of samples to be tested:
|
50 samples, an appropriate cover opening module is selected, the sample can open the cover automatically
270 samples, appropriate pre-storage tray module and reclaiming tray module are selected |
|
Maximum capacity of strip bin:
|
200 strips
|
|
Maximum capacity of waste strip bin:
|
400 strips
|
|
Emergency treatment function:
|
Special position for emergency
|
|
Sample bar code identification:
|
A built-in bar code reader, automatic scanning of sample bar code;
An external bar code reader, manual scanning of bar code (optional). |
|
Light source:
|
Full spectrum of visible light
|
|
Camera type
|
Color camera
|
|
Port :
|
Data communication interface: bidirectional RS-232 communication interface LIS interface; internet access LIS and serial port LIS
|
|
Connection with LIS system:
|
Both-way communication with LIS system is supported
|
|
Test results storage:
|
capacity ≥100,000 data
|
|
Weight:
|
Host: 86kg
When the host is connected with the cover opening module: 100kg When the host is connected with the cover opening module, pre-storage tray and reclaiming tray and reclaiming bridge module: 132kg |
|
cover opening module:
|
Dimensions (L×W×H):
Host: 688mm×779mm×584mm When the host is connected with the cover opening module: 1177mm×779mm×584mm When the host is connected with the cover opening module, pre-storage tray and reclaiming tray and reclaiming bridge module: 2055mm×897mm×584mm |
|
Power consumption:
|
Host: 390VA
When the host is connected with the cover opening module: 430VA When the host is connected with the cover opening module, pre-storage tray and reclaiming tray and reclaiming bridge module: 480VA Computer: 300VA |
Our Service
1. Help customer analyze product project and provide solution.
2. Provide shipping/delivery information checking service.
3.18 months warranty, all life maintain promise.
4.24 hours online service.
FAQ
Q: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of medical equipment.
Q: Are your products conforming to our standards ?
A: Yes, our products can pass the testings as you require, e.g.: CE,ISO9001,ISO13485
Q: How do you control the quality ?
A: We have perfect QC system , professional product engineers and continuous improvement system.
Q: What’s the product warranty?
A: We offer 18 months guarantee.
Want to Know more details about this product
